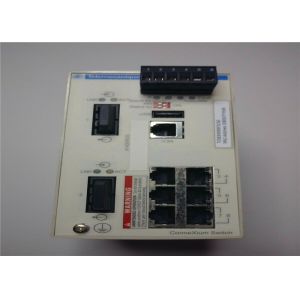

ConneXium

Ethernet TCP/IP managed switch

Transparent Ready

Ethernet TCP/IP

100BASE-FX - 2 fiber optic
10BASE-T/100BASE-TX - 22 copper cable

Unlimited

Duplex SC fiber optic
Shielded RJ45 copper cable

Twisted shielded pairs cable CAT 5E copper cable
Multimode optical fiber fiber optic

328.08 ft (100 m) copper cable

11 dB 62.2/125 µm)
8 dB 50/125 µm)

Rapid Scanning Tree Protocol (RSTP)
IGMP Snooping
Priority port
Configuration via web server
SMTP V3
Secure port
FDR
Data stream control
SNTP client
VLAN
Multicast filtering

50

Redundant single ring
Ring coupling
Redundant power supplies

24 V

9.6…60 V DC SELV
18…30 V AC SELV

14.5 W

Removable connector 6 ways power supply

35 mm symmetrical DIN rail

CE

P1 P2 power supplies 2 LEDs
Fault 1 LED
Ring manager 1 LED
Stand-by 1 LED
Copper port activity 1 LED per channel
Copper port status 1 LED per channel

Data link status
Switch fault
Redundancy ring fault
Power supply fault

TF switches

4.37 in (111 mm)

5.16 in (131 mm)

4.37 in (111 mm)

1.34 lb(US) (0.61 kg)

32…140 °F (0…60 °C)

10…95 % without condensation

IP20

UL 1604
UL 508
CSA C22.2 No 213 Class I Division 2
CSA C22.2 No 142
CUL 60950

GL
C-Tick

18225 - PLC NTWRK HRDWR & PROWORX SOFTWARE

PC41

00785901474456

0.93 kg (2.05 lb(US))

No

DE

Green Premium product

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

Yes

China RoHS declaration

Product Environmental Profile

No need of specific recycling operations

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
