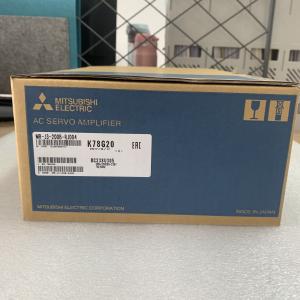

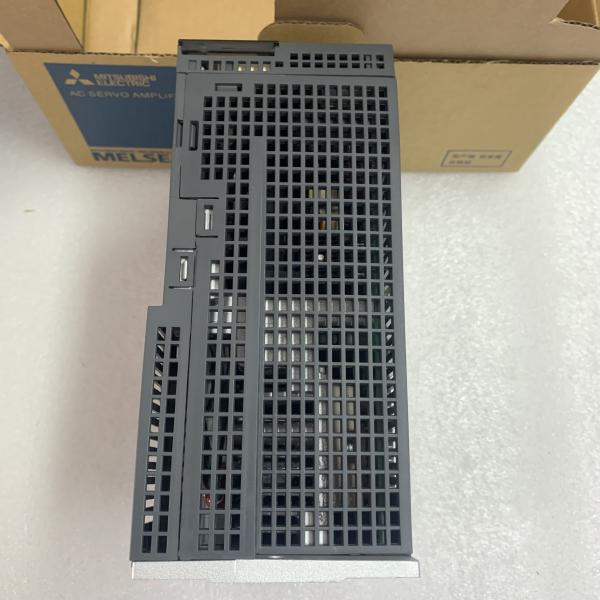

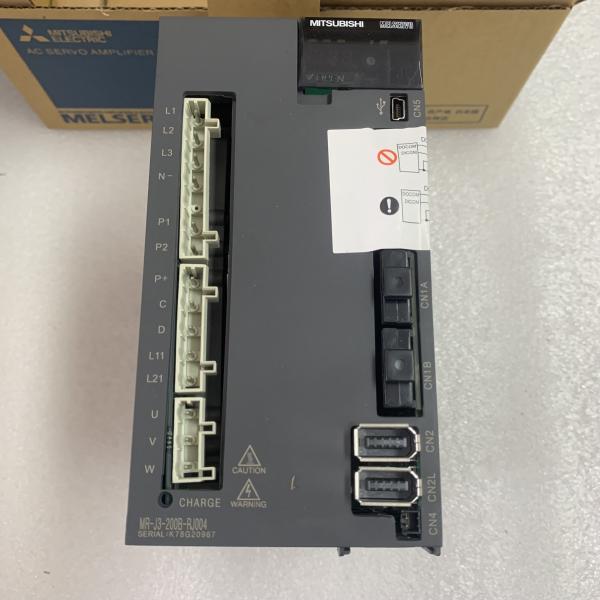

MITSUBISHI MR-J3-200B-RJ004 Product information and technical parameters:
Brand: MITSUBISHI
Name: Suitable for linear servo motor drive
Model: MR-J3-200B-RJ004

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 2.0kw.
Interface type: SSCNET type III fiber communication.
Special specification: suitable for linear servo motor.
Power specification: three phase AC200V.
More advanced real-time automatic tuning by setting response values,
Including the position gain and the gain of speed, all the gain can be adjusted automatically.
32 segment response level can be set.
Advanced vibration suppression control.

An optimal vibration control filter value is automatically set by the automatic tuning function to effectively suppress the vibration of the 100Hz frequency that occurs when the driving part stops.
The automatic tuning function can effectively restrain the vibration of the end of the mechanical arm and reduce the residual vibration in the machine.

Motor series: flat type, medium and small power.
Rated output power: 0.75kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).

Features: flat type design makes this more suitable for installation in space.
Application examples: robot, food manufacturing machinery MITSUBISHI MR-J3-200B-RJ004.
High resolution encoder 131072p/rev (17 bit) MR-J3-200B-RJ004
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring. "MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.

Rated output: 5.0kw.
Universal interface.
Voltage: 3 phase AC200VAC or single phase AC230V MITSUBISHI MR-J3-200B-RJ004.
Super function, excellent performance.
Super function, excellent performance.
High performance CPU integration, greatly improve product responsiveness.
Due to the application of high performance CPU, so that the response can be greatly improved.
Speed loop frequency response increased to more than 550HZ.

MR-J2-Super series is the best device for high speed positioning applications MITSUBISHI MR-J3-200B-RJ004.
Easy adjustment.
Model adaptive control / advanced real time automatic tuning.
Mechanical analysis function.
Can analysis of the frequency characteristics of the mechanical system, the results can be easily set up "mechanical resonance suppression filter"
Mechanical simulation function.

The function can be realized without the actual replacement of the motor. Read mechanical analysis results to simulate the response of the user''s mechanical system. "MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.75kw.

Interface type: SSCNET type III fiber communication.
Special specification: suitable for direct drive servo motor.
Power specification: single phase AC200V.
Direct drive system suitable for high speed and high precision!

High speed operation can be realized by direct drive (2m/s), and the traditional mechanical transmission can not achieve such a high speed.
The full closed loop control can be realized by using the position feedback signal from the load side encoder, such as the linear encoder.
The use of a flexible linear servo motor drive components can makee the system more compact structure MR-J3-200B-RJ004.
The primary side of the linear servo motor (motor coil) is sliding along the secondary side (permanent magnet) of the motor,
So linear servo motor is especially suitable for large range of appliccations MR-J3-200B-RJ004. In addition, linear servo motor can be connected in series,
Especially for large systems in two axes for high precision synchronous operation.
